National Pipe Thread Fine (NPTF) male threaded adapter for connecting a hose to a male hose coupler NPTF male threads on one end and a female hose coupler on the other end to connect a hose to a pipe Brass for corrosion resistance, ductility at high temperatures, and low...

Details

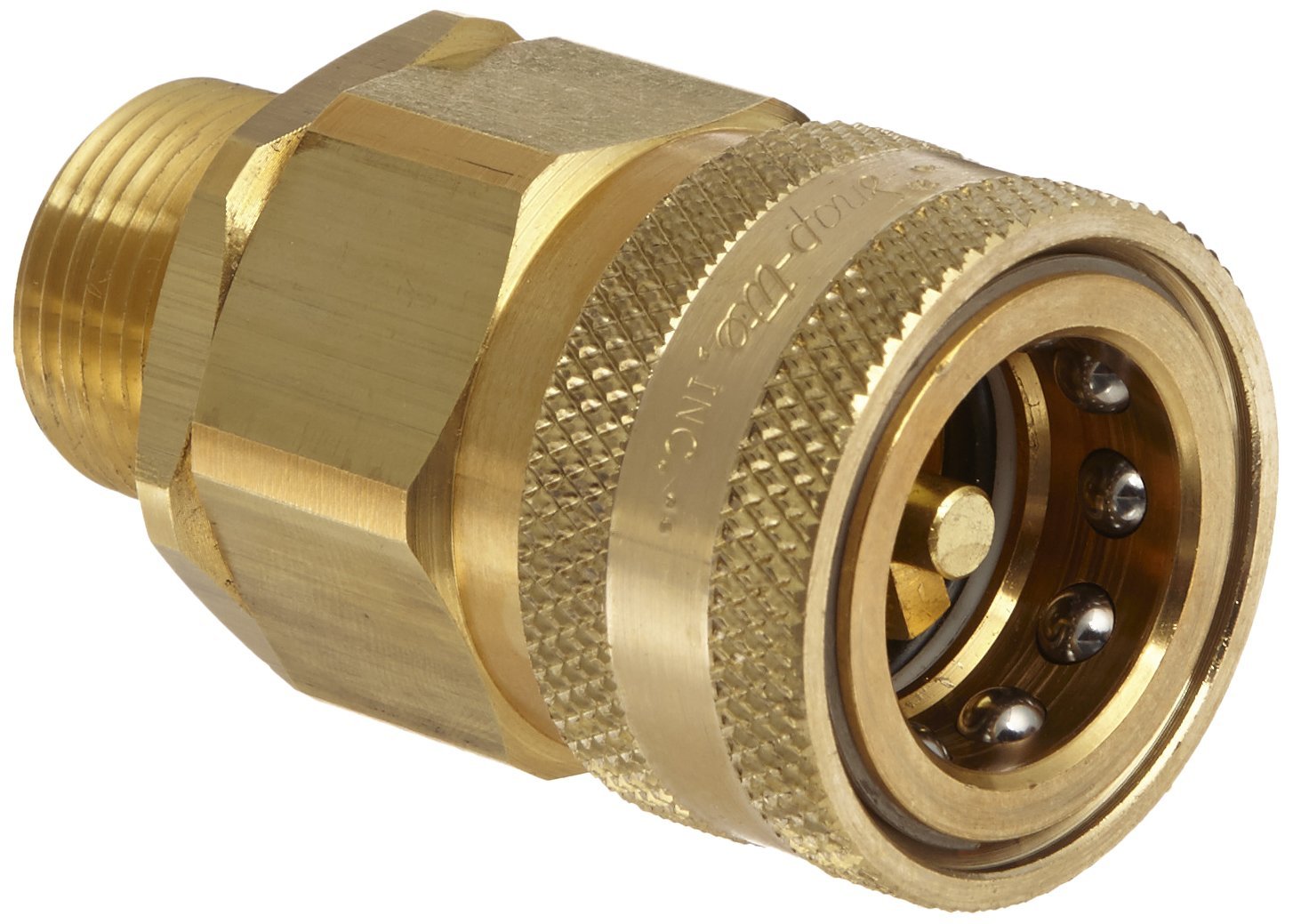

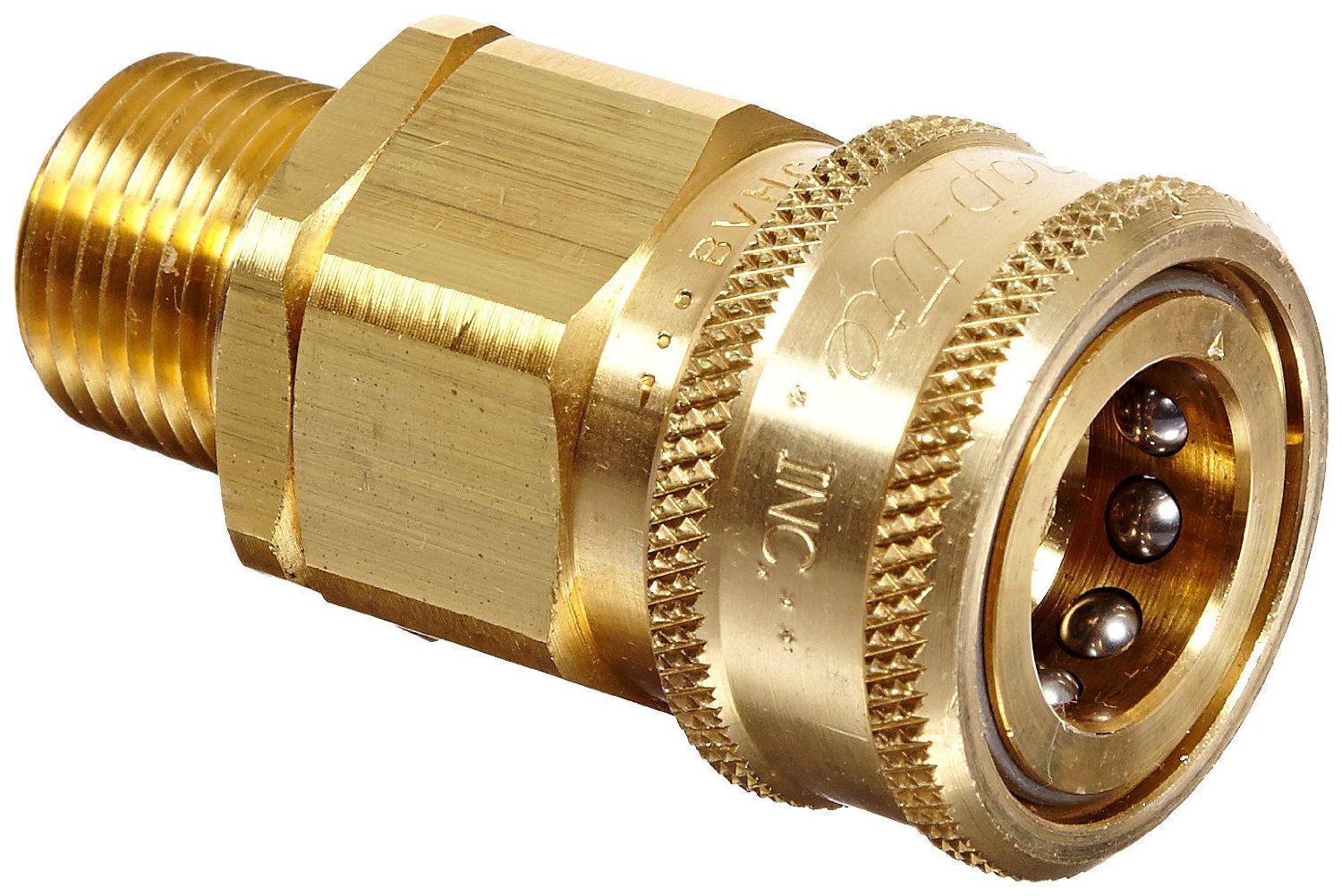

National Pipe Thread Fine (NPTF) male threaded adapter for connecting a hose to a male hose coupler
NPTF male threads on one end and a female hose coupler on the other end to connect a hose to a pipe
Brass for corrosion resistance, ductility at high temperatures, and low magnetic permeability
Quick-Disconnect for increased ease of use
Self-locking valve sleeve for protecting against accidental disconnection

Brand Name Snap-Tite
Part Number BVHC12-12M
Number of Items 1
Material Type Brass
Size 3/4" NPTF Male x 3/4" Coupling Size
Maximum Pressure 2000  PSI
LowerTemperature Range -40  Degrees Fahrenheit
Upper Temperature Range 200  Degrees Fahrenheit
Specification Met MIL-C-51234
Compatible Material air, water, coolants, hydraulic oil, petroleum
Connector Type NPTF Male x Coupling size
For Pipe Size 3/4 inches
For Use With Product Type Rubber Hose
Item Styling quick_release
Seal Material Type Buna-N
Shape coupling ;Socket;Sleeve;
